Protein-DNA interactions are crucial for orchestrating a wide range of biological processes, including gene regulation, DNA replication, DNA repair, and chromatin organization. Proteins possess structurally unique DNA‑binding domains that recognize and bind specific regions of the DNA double helix. These interactions rely on precise chemical contacts and are fundamental to cellular function.
Because of their central role in biology, numerous analytical methods have been developed to study how proteins bind DNA, how strong these interactions are, and how they change under different conditions.
Classical methods for studying protein–DNA interactions include filter binding assays, Electrophoretic Mobility Shift Assays (EMSA), Chromatin Immunoprecipitation (ChIP), and Yeast One-Hybrid (Y1H). While these techniques have greatly advanced our understanding of gene regulation, they often suffer from limitations such as complex workflows, long assay times, high equipment requirements, and significant costs. Filter binding and EMSA are mainly limited to in vitro analysis, whereas ChIP and Y1H enable more advanced studies but require large sample amounts, specialized reagents, or can produce false-positive results.
Due to these drawbacks, there is a growing demand for faster and simpler alternatives. This is where the rapid test developed by Toft C. J. et al. and the HybriDetect platform offer a promising solution.
The Rapid Protein-DNA Interaction Test (R‑PNAI‑T) translates classical protein-DNA binding assays into a simple lateral‑flow format. A GFP‑tagged protein of interest forms a complex with a biotinylated DNA target, which is then captured and visualized directly on the HybriDetect dipstick. This makes protein-DNA interaction analysis fast, equipment‑free, and accessible.

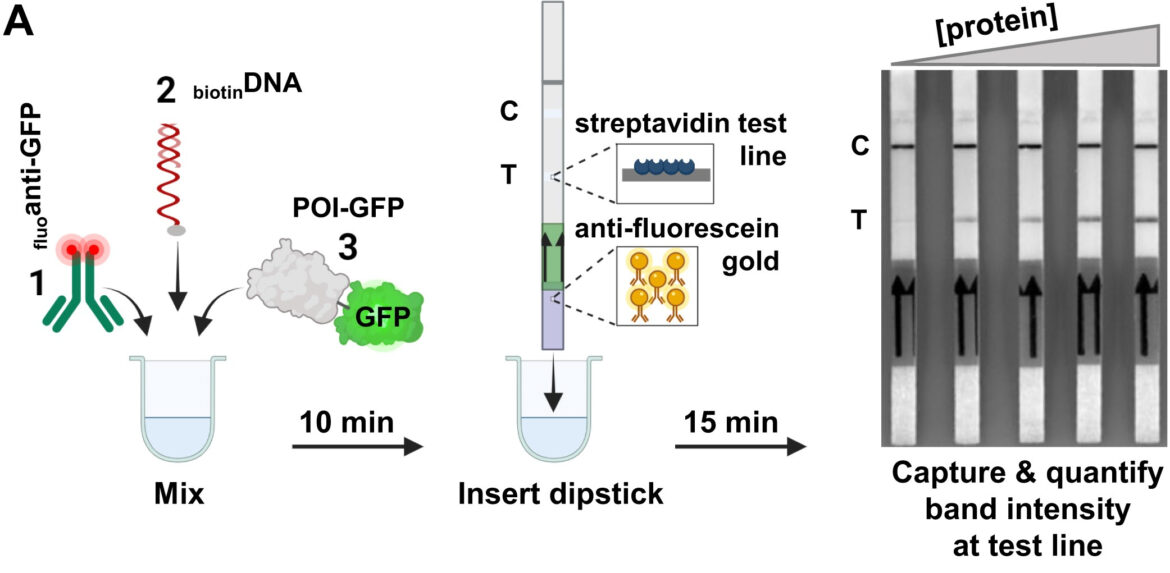

The R‑PNAI‑T workflow is simple. First, a GFP‑tagged DNA‑binding protein is mixed with a biotinylated oligonucleotide containing the target sequence. If the protein recognizes and binds the DNA, the complex carries two labels:
This mixture is then applied to the HybriDetect lateral‑flow strip. As the sample migrates, the biotinylated complex is immobilized at the test line, while the GFP tag is recognized by anti‑GFP antibodies, which bind to the gold nanoparticles due to their FAM label. The result is a clear, visual test line that directly reflects protein–DNA interaction strength.
The entire assay takes only a few minutes and requires no instrumentation.
HybriDetect is the core enabling technology behind the R‑PNAI‑T concept. The strip provides both the capture mechanism (via biotin-streptavidin interaction) and the detection mechanism (via fluorescein specific gold nanoparticles). Only the external addition of fluorescein anti‑GFP gold conjugates as linkers is necessary. This allows protein-DNA complexes to be detected without electrophoresis, imaging systems, or specialized equipment- turning a complex molecular assay into a simple lateral‑flow readout. Moreover, in this study the strips provide a robust and reproducible result along with a broad 3-log dynamic range which is extremely crucial for quantifying protein-DNA interactions.
The R-PNAI-T assay demonstrated that Hybridetect can be used not only for nucleic acid detection but also for direct visualisation of protein-DNA complexes.

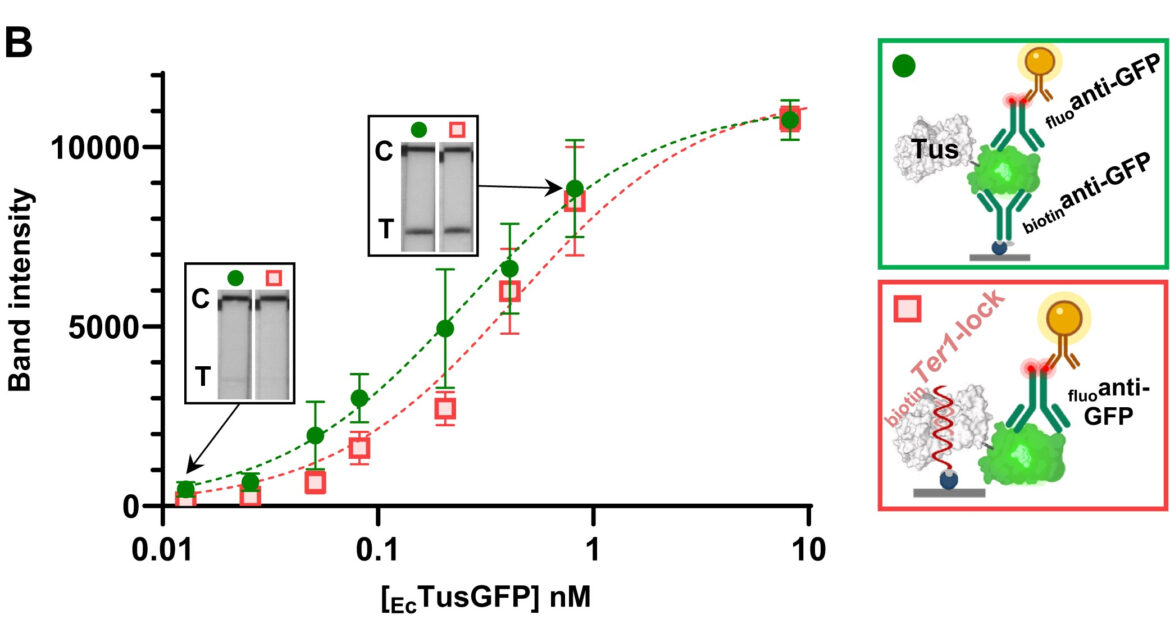

The test demonstrated a sensitivity of as low as ~ 0,7 fmol of E. coli Tus protein whereby even weak and transient interactions were reliably detectable. This suggests a strong future potential for screening mutant libraries, transcription factor variants or engineered DNA-binding proteins. Furthermore, the R-PNAI-T assay can be applied for human serum samples and bacterial lysates demonstrating robustness of the test in non-purified environments. This extends the possibility of monitoring protein-DNA interactions in crude extracts or even in clinical or environmental samples. The publication also demonstrates the successful detection of interaction between DnaA initiator protein and the DnaA box in Burkholderia pseudomallei using PCR amplified DNA. This extends to further future applications in mapping replication origins, validating regulatory DNA motifs and characterizing unknown DNA elements.
Protein-DNA interactions are fundamental to nearly every aspect of cellular biology, yet classical methods for studying them, such as; EMSA, ChIP, and filter binding assays are often slow, labour-intensive, and equipment‑dependent methods. The newly developed R‑PNAI‑T assay addresses these limitations by translating protein-DNA binding analysis into a rapid, lateral‑flow‑based format.
The method developed by Toft C.J. et.al., detects protein-DNA complexes in ~15 minutes, without the need for specialized instrumentation, and achieves high sensitivity while maintaining robustness even in complex samples such as serum or lysates. This method in combination with the HybriDetect lateral flow test strips transforms a traditionally complex molecular assay into a simple, accessible, and quantitative readout.
Given its versatility, sensitivity, and ease of use, the R‑PNAI‑T has strong potential to become a widely adopted tool in molecular biology, biotechnology, and diagnostic research. It represents a significant step toward democratizing protein–DNA interaction analysis and enabling rapid experimentation in both laboratory and field settings.
